We have a wide range of steel products at competitive prices.
Stainless Steel/Carbon Steel/Alloy Flange
Categories:
Keywords:
Stainless Steel/Carbon Steel/Alloy Flange
PRODUCT DETAILS
| Flange | |
| Product Name | Flange |
| Grade | Stainless Steel: ASTM A182 F304/F316/F321/F317/F309/F310/F347/F348 Carbon Steel:A105、A350、A694 Alloy steel:ASTM A182 F5、F9、F11、F22 |
| ASTM UNS | 410，430，201，304，304L，321，316，316L，317L，347H，309S310S，904L，S32205，2507，254SMOS，32760，253MA，N08926,etc. |
| EN | 1.4301,1.4307,1.4541，1.4401,1.4404，1.4571，1.4438,1.4539,1.4547,14529，1.4562，1.4410，14878，1.4845，1.4828,1.4876 2.4858，2.4819,etc. |
| Surface: | Carbon steel:shot blasted,black painting,rust-proof oil,transparent oil,galvanizing,hot galvanizing Alloy steel:Shot blasted,black painting,rust-proof oil,transparent oil,galvanizing,hot galvanizing Stainless steel:pickled,Polish |
| Thickness: | 0.3-150mm，(SCH10-XXS) |
| Specifications: | 10-1220mm，(3/8"-100") etc |
| Pressure: | PN0.5-PN500 |
| Application: | Chemical engineering, construction, drainage, petroleum, light and heavy industry, plumbing, fire fighting, electric power, aerospace, shipbuilding and other basic projects |
| Flange sizes | 1/2”-60” (DN15-DN3000) Thickness Schedule 10(S) to SCH 16 |

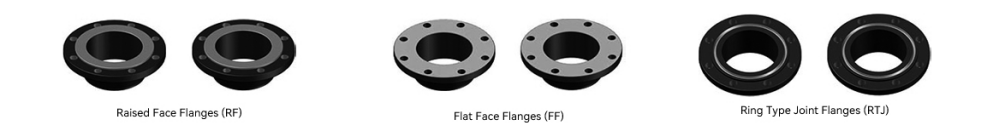

| Flange facing There are three primary types of flange facings. Not all facings are available with each end connection. This is based on the design of the flange and design of the piping system. | |
 | |

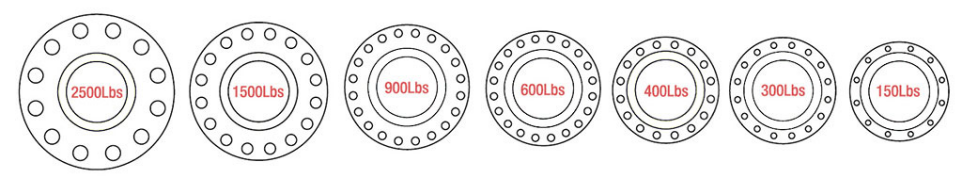

| Flange pressure classes | |
 | |
| Flange types | |
 | Blind flange A blind flange, abbreviated as BF, is a piping component for covering or closing the end of a pipe, valve, vessel or tank. |
 | Lap joint flange A lap joint flange, abbreviated as LJF, is a flange that consists of two parts, a stub end and the backing flange. In general, the thickness of the hub is between ¼” to 3/8”. |
 | Raised face flange the most common type of flange facing is the raised face flange, abbreviated as RF. It is used in almost all applications in high and low pressures and temperatures. The face of the flange is either 1/16” or 1/4” depending on the pressure class. ANSI 300 and under have a 1/16” raised face and ANSI 400 and above have a 1/4” raised face. |
 | Slip-on flange Slip-on flanges, abbreviated as SOF, are designed to slip over the outside of pipe, long-tangent elbows, reducers, and swages. |
 | Thread flange The threaded flange, abbreviated as TRHF, is similar to a slip-on flange, but has internal threads. It is normally used for low pressure and not used where temperature or stress is very high. This flange has a raised face. |
 | Socket weld flange The socket weld flange, abbreviated as SWF, is similar to a slip-on flange, except only one fillet weld is made to the flange and pipe. Pipe is welded to socket weld flanges by inserting the pipe into the socket and backing the piping out between 1/16” and 1/8”. |
 | Weld neck flange the weld neck flange, abbreviated as WNF, is a flange type that is usually used with pipes, as opposed to pressure vessels. |
